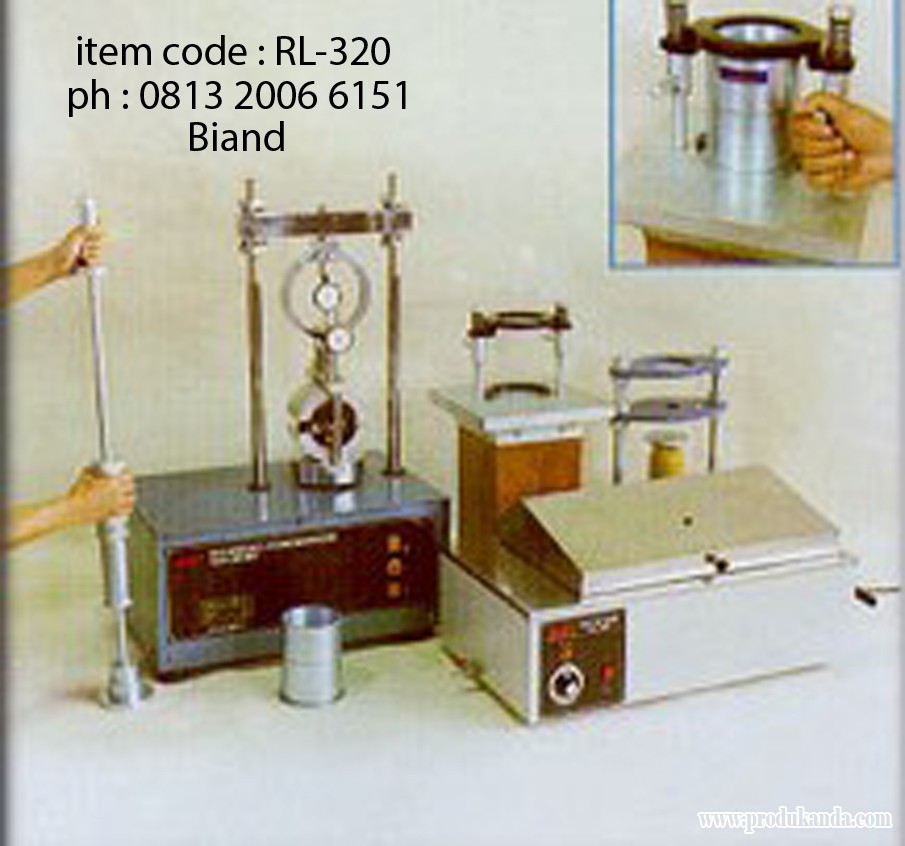

(item code : RL-320)
|
Dimension (l x w x h) |
: 67 x 50 x 100 cm |
|
Gross Weight |
: 200 kg |
|
ASTM D-1559 |
AASHTO T-245 |
||
|
For determining the resistance to plastic flow of cylinder specimen of bituminous paving mixture loaded on the lateral surface by means of the marshall apparatus. |
|||
|
RI-321 |
Compression Machine |
Steel frame, electric, 220 V-AC, 1/2 HP, 1 Phase, speed:2″ per minute |
1 Set |
|
RI-322 |
Compaction Mold |
Machined steel, galvanized, 4″ dia., 3″ height, with collar and base plate |
1 Set |
|
RI-323 |
Stability Mold |
Cast alumunium, split type 4″ i.d., 4″ wide |
1 Set |
|
RI-324 |
Compaction Hammer |
Machined steel, galvanized, 10 lbs, hammer weight, 18″ drop height |
1 Set |
|
RI-326 |
Compaction Pedestal |
Wooden base with steel platen |
1 Pc |
|
RI-327 |
Compaction Mold Holder |
Machined steel, quick clamping system |
1 Set |
|
RI-328 |
Extruder |
Steel frame, hydraulic system |
1 Set |
|
RI-329 |
Flow Meter |
Cast alumunium, clamping bolt, with dial indicator 30 x 0.01 mm |
1 Set |
|
RG-200 |
Water Bath |
Stainless steel, water heater 220 V-AC, thermostat 30-85oC |
1 Set |
|
RG-101.6 |
Proving Ring |
6000 lbs capacity |
1 Set |
Also required,
but not part of this set :
RG-161 Digital Balance
RG-222 Butane Field Heater
RG-363 Mixing Bowl
RG-622 Dial Thermometer
